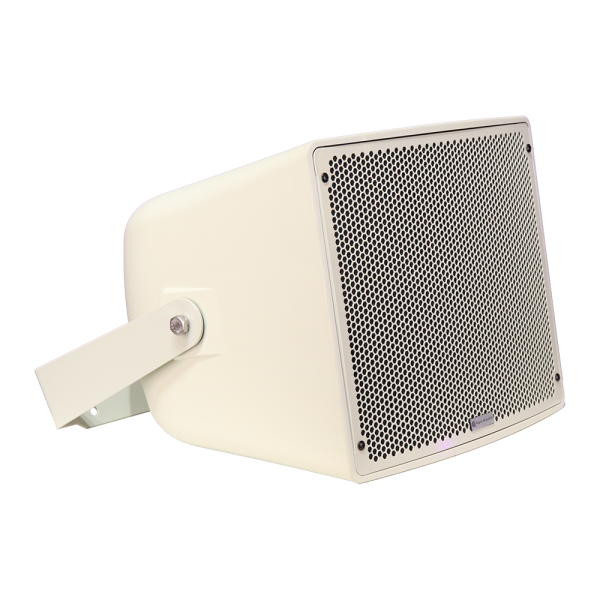

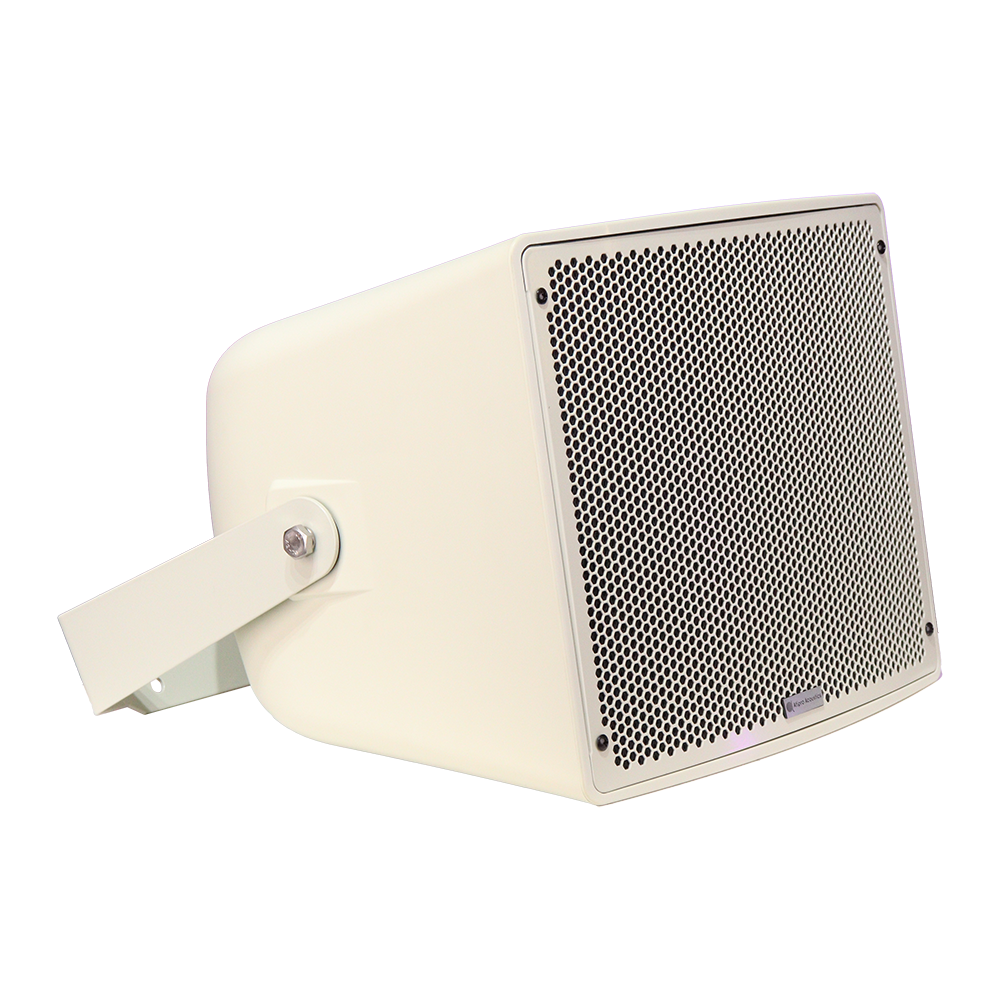

Ultra-Compact Coaxial Two-Way All-Weather Horn Speaker Model Name- ATI-RC-150T

Rated Power- 18.5W/37.5W/75W/150W@100V

9.5W/18.5W/37.5W/75W@70V 150W@8 Ohm

Maximum Power- 300W

Input- 70V/100V/8 Ohm

Sensitivity (1W/1M)- 93dB ± 3dB

Frequency Response- 80Hz-18KHz

Radiation Angle- <90-100 Degree

Speaker Unit- 10″*1 (Bass), 3″*1 (Treble)

Product Size- 345*355*297mm

Weight- 11Kg

Category:

Description

⦁ The ATI-RC-150T Ultra-Compact Coaxial Two-Way All-Weather Horn Speaker is designed for powerful, long-range sound projection in outdoor and professional environments.
⦁ Supports versatile power settings with 18.5/37.5/75/150W at 100V, 9.5/18.5/37.5/75W at 70V, and 150W at 8 Ohm, ensuring maximum installation flexibility.
⦁ Delivers up to 300W maximum power, making it suitable for high-demand applications like stadiums, transport hubs, and industrial facilities.
⦁ Equipped with a 10″ bass driver and 3″ treble unit, offering balanced coaxial two-way sound for both music and speech clarity.
⦁ Provides 93dB ±3dB sensitivity and a maximum SPL of 118–120dB, ensuring excellent audio projection across large areas.
⦁ Operates within a wide frequency response of 80Hz–18KHz, delivering rich lows and detailed highs.
⦁ Features a radiation angle of <90–100°, providing consistent sound coverage with fewer speakers required.
⦁ Built with a rugged all-weather ABS enclosure, ensuring durability and resistance to harsh environmental conditions.
⦁ Compact yet robust design with dimensions of 345×355×297mm, making installation practical without compromising output.
⦁ Weighs 11Kg, ensuring stability while maintaining manageable handling during setup.
⦁ A premium solution from ATI Pro Technologies, delivering reliable, weatherproof and professional-grade performance for large-scale installations.
